Kitchen
WUB-30DFP dual zone wine cooler | 30cm | 13 bottles | Panel ready
£ 2423,00
incl. 20% taxes
- The discreet fusion of wine and culinary art

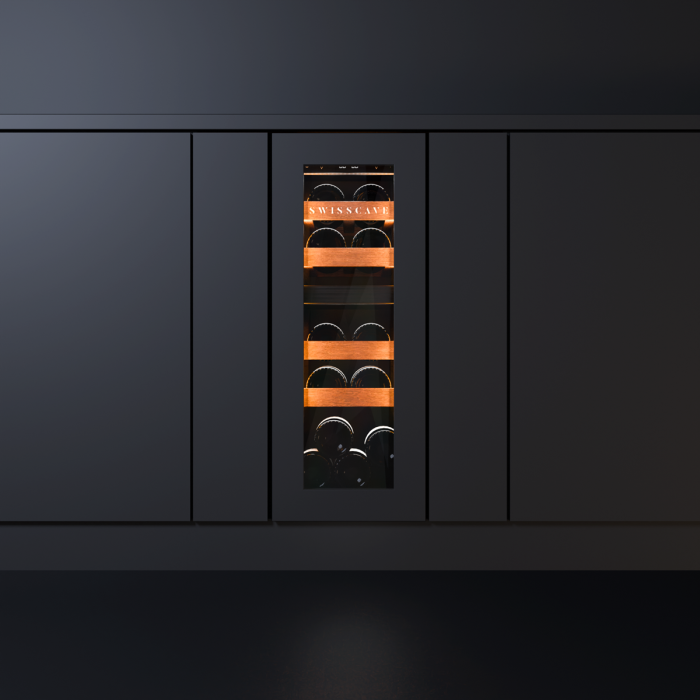

- 30 cm under-counter niche, compatible with kitchen cabinetry
- Equipped with premium Sapele wood full-extension shelves (Mahogany)
Note: This unit features a Panel Ready door. Also available with Touch-to-Open function and door handle.
|
|
|
|
|
|
 |
|
 |
|
 |
|
| Delivery Time | Pre-order: 3-6 months |
|---|---|
| Temperature zones | 2 |
| Product dimensions (H/W/D) | 820 x 297 x 572 mm |
| Niche dimensions (H/W/D) | 820-870 x 300 x 600 mm |
| Noise level | 41 dB(A) sound-absorbing recommendation |
| Power consumption per day | 0,265 kWh (ca.) |
| Net weight | 25 kg |
| Cooler shape | Kitchen-built-under |
| Warranty | 5 years (AWB) |
| Bottle capacity (Bordeaux shape, all shelves inserted) | 13 |
|---|---|
| Bottle capacity (Bordeaux shape, part of shelves removed) | 13 |
| Transport weight | 28 kg |
| Humidity | Recommendation 50-70% |
| Voltage | 230 V / 50 Hz |
| Climate classification | SN-T |
| Volume | 48 l |
| Temperature range upper zone | 5 °C - 16 °C |
| Temperature range lower zone | 9 °C - 20 °C |
| Temperature zone | 5°C - 16°C | 9°C - 20°C |
| Optimal usage | Tempering and storing |
|---|---|
| User interface | 2 digital displays (set and actual temp.) |
| Fans | High-performance, low-noise fan technology |
| Compressor | JP-STD |
| Coolant | R600a (environment friendly) |
| Cooling system | Combined fan and convection cooling |
| Defrost function | Automatic |
| Space for oversized bottles (e.g. 1,5lt. Magnum, 3lt.) | On bottom shelf |
| Heating | Powerful winter heating function (*In heating mode, temperature and humidity values may vary from the set value) |
| Active carbon filters (ensuring optimal air quality) | Yes |
| Temperatur Memory Function (Power failure) | Yes |
| Condensation water container | Yes |
| Acoustic temperature alarm | Yes |
| Acoustic door alarm | Yes |
| Vibrationfree implementation | Yes |
| Tilt protection | Yes |
| Feet adjustable to compensate uneven floors | Yes |
| Terms of delivery | Read here |
|---|---|
| Power cable length | 2 m |
| Label | Loading View WUB-30DF SERIES |
|---|---|
| Description | The Loading View illustrates the optimal arrangement of wine bottles inside the SWISSCAVE WIB-30DF SERIES wine cooler. |
| Type | |
| Size | 373.9 KB |
| Download |
| Label | User Manual WUB-SERIES |
|---|---|
| Description | The manual applies to the WUB models of the SWISSCAVE Kitchen Line. |
| Type | |
| Size | 2.6 MB |
| Download |
| Label | Datasheet-DE-WUB-30DFP |
|---|---|
| Description | The Datasheet provides the complete technical specifications and key performance data for the SWISSCAVE WUB-30DFP wine cooler. |
| Type | |
| Size | 109.2 KB |
| Download |
| Label | Datasheet-EN-WUB-30DFP |
|---|---|
| Description | The Datasheet provides the complete technical specifications and key performance data for the SWISSCAVE WUB-30DFP wine cooler. |
| Type | |
| Size | 109.8 KB |
| Download |
Visual Elements & Finishing Details
Exterior
| Casing | Black coated steel |
|---|---|
| Door glazing | Fully glazed UV-resistant, gas-filled, with low energy panes equipped glass door (double glazed) |
| Door frame | Panel Ready |
| Door hinge | Right |
| Door hinge convertible as option (right to left) | Yes |
| Packaging dimensions (H/W/D) | 865 x 350 x 655 mm |
Interior
| Lighting | All around illumination white, blue, amber (adjustable) |
|---|---|
| Lighting on/off switch | Yes |
| Number of shelves total | 4 |
| Shelf material | Raw natural sapele (Mahogany) wooden display shelves with attractive grip bars |
| Telescopic shelves on extendable steel ball bearings | Full extension shelves (80%) |
| Inside casing | Black PUR |
| Pull-out front panels | Trims in brushed anodised aluminium available in 5 colors |
